Zero Run-Out Tool Image Inspection Device KJ-102
KJ-102
 KJ-102-5KJ-102-3c
Outstanding Features
  • Easy to define image by simply rotating the tool without need of any chucking. This fully eliminated run-out error.

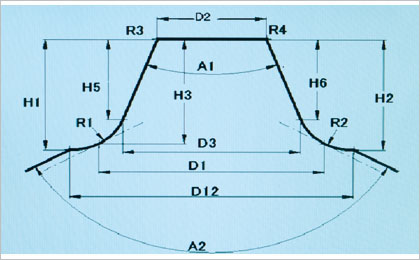

  • Applicable for inspecting and analyzing image of contour, angle and radius for various tools, such as carving tools, ball-end tools, round-nose tools, chamfering tools and general milling tools.
Specification
Model Applicable tool shank diameter Image magnification Resolution
KJ-102 Ø3~Ø32 mm 35~200x
4-stap graduated lens		 0.001mm
Standard Accessories
  • PhotoTM: 2D image measurement software for Cutting Tools
  • Personal computer
  • Front light LED
  • Contour light LED
