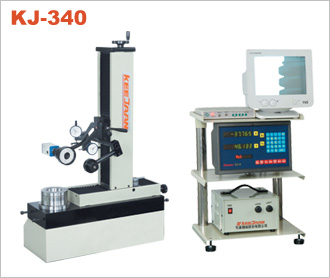

Optical Tool Presetter  KJ-1000/KJ-340
KJ-1000KJ-340
  • KJ-TM
  • A high resolution CCD measuring system combined, Magnification 35x~200x. (or more).
  • Automatic scanning greatly upgrades softwase measuring accuracy. (Optional)
  • Not only suitable for measuring tool radius, angle, cutting angle and back bevel angle, but also ideal for inspecting tool surface conditions.
  • Tool edge and side surface can be measured and projected.
Specification
Travel Magnification Resolution
KJ-1000-50 X:150
L:50~400		 35x~200x 0.001mm
KJ-340-40 X:150 50x 0.001mm
KJ-340-50 L:50~400 50x 0.001mm
Standard Accessories
  • 1/3" colorful CCD
  • Colorful LED monitor
  • Backlight LED
  • Frontlight LED
  • Cross line generator
Optional Accessories
  • Sleeve ISO40#, 30#, HSK-63,50,40
  • Vacuum pulling device (pneumatic)

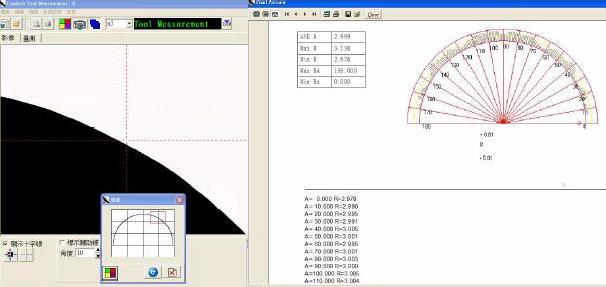

  • PhotoTM: 2D image measurement software for Cutting Tools
  • PC
  • Horizontal Jig
Horizontal Jig  Zero run-out feature makes it ideal for tool run-out inspection and other inspection applications
